Cross-linked polyethylene (XLPE) has emerged as a key material in modern electrical cable manufacturing due to its outstanding combination of thermal, mechanical, and chemical properties. XLPE cables are widely used in power transmission and distribution networks, industrial installations, underground and submarine systems, and specialized high-voltage applications.
The superior performance of XLPE cables is primarily due to the crosslinking process, which converts linear polyethylene into a three-dimensional network, improving its heat resistance, mechanical strength, and chemical stability. Achieving consistent and high-quality XLPE, however, requires precise control over polymer formulation, additives, and catalysts.
Among these, DBTDL (Dibutyl Tin Dilaurate) plays a critical role in ensuring efficient crosslinking, uniform network formation, and optimal cable performance. DBTDL is a highly effective organotin catalyst widely employed in XLPE cable compounds.
It accelerates the peroxide-initiated crosslinking process, ensuring uniform reaction rates and reducing the energy and time required for curing. Without DBTDL, crosslinking would be slower, less uniform, and less efficient, potentially resulting in inferior mechanical, thermal, and electrical properties.
In this article, we explore the role of DBTDL in XLPE cable compounds, how it functions at the molecular level, its applications and advantages, key processing considerations, safety aspects, and emerging trends in its use!
Understanding XLPE Cable Compounds
XLPE cable compounds are primarily polyethylene formulations that have undergone chemical crosslinking to enhance their thermal, mechanical, and electrical performance. Crosslinking involves converting linear polyethylene chains into a three-dimensional network, which significantly improves material stability. The process leads to:
Enhanced thermal resistance, allowing cables to operate safely at higher temperatures. Improved mechanical strength, including better tensile and impact resistance. Reduced creep and deformation, ensuring long-term dimensional stability under load.
Superior chemical and moisture resistance, protecting cables from environmental degradation. The crosslinking of XLPE generally uses organic peroxide systems. Peroxides decompose upon heating to generate free radicals, which then attack the polyethylene chains, forming covalent bonds between polymer molecules.
The extent and uniformity of crosslinking determine the final properties of the cable, such as insulation strength, thermal performance, and lifespan. While crosslinking can occur without catalysts, the reaction is slow and difficult to control at industrial scales. Catalysts like DBTDL are therefore essential for efficient, controlled, and cost-effective XLPE production.
What Is DBTDL?
Dibutyl Tin Dilaurate (DBTDL) is an organotin compound widely used as a catalyst in polyurethane, silicone, and polyethylene crosslinking systems. Its molecular structure enables it to accelerate peroxide decomposition and promote efficient crosslinking in XLPE cable compounds. DBTDL is highly valued in industrial formulations due to several characteristics:
High catalytic activity, which allows it to work effectively even at low concentrations.
Thermal stability, ensuring consistent performance during high-temperature curing.
Selective catalysis, reducing side reactions and minimizing polymer degradation.
In XLPE cable manufacturing, DBTDL ensures that crosslinking occurs efficiently, uniformly, and with minimal energy input. It is compatible with a wide range of polyethylene grades and formulations, making it a versatile choice for cable manufacturers.
Click Here To Know More About Tin Calatyst!
Role Of DBTDL In XLPE Cable Compounds
The most important contribution of DBTDL to XLPE cable compounds is its catalytic activity, which enhances the speed and quality of the cross-linking process. In peroxide-based XLPE systems, peroxides break down under heat to generate free radicals that link the polyethylene chains. DBTDL accelerates this reaction, ensuring faster and more uniform cross-linking throughout the material.
Key contributions Of DBTDL Include:
- Acting As A Cross-Linking Catalyst: DBTDL reduces the temperature and time required for peroxide decomposition, encouraging faster radical formation. This helps achieve the desired level of cross-linking more efficiently, improving production throughput and ensuring that cable insulation cures uniformly along its length.
- Increasing Gel Content: Gel content is a measurement of the amount of polymer that has been successfully cross-linked. High gel content is strongly associated with better mechanical strength, thermal resistance, and improved electrical performance. DBTDL helps achieve uniform gel distribution, reducing the risk of weak spots and ensuring consistent cable quality.
- Enhancing Mechanical Properties: By supporting thorough cross-linking, DBTDL strengthens the overall polymer network. This results in cables with better tensile strength, improved elongation at break, and superior resistance to mechanical stress during installation and service life. Stronger mechanical properties help the cable maintain integrity over decades of operation.
- Improving Thermal Performance: A well-cross-linked structure helps cables withstand high temperatures without deforming or failing. DBTDL ensures the material maintains stability during thermal cycles, short circuits, and fluctuating load conditions. This makes XLPE cables safer and more dependable for power distribution systems.

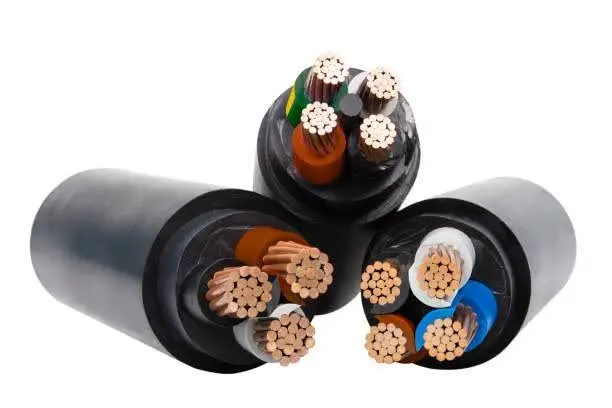

- Improving Manufacturing Consistency: DBTDL helps cross-linking occur evenly across the entire insulation layer. This uniformity minimizes defects such as gel spots, cracks, voids, or inconsistent insulation thickness. It also contributes to shorter curing times, faster processing, and better control over production parameters.
Applications Of DBTDL In XLPE Cable Compounds
DBTDL’s role in accelerating crosslinking makes it critical in the following applications:

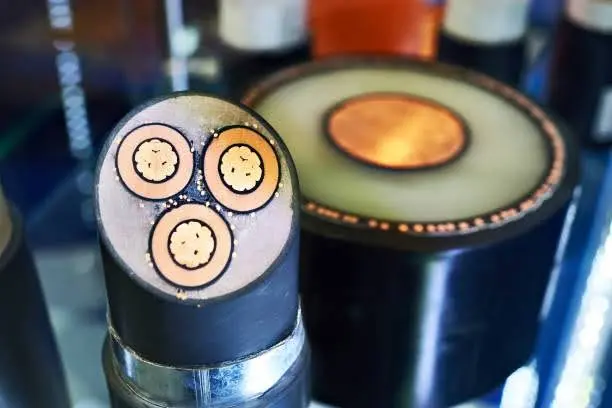

- Medium & High-Voltage XLPE Cables: Ensures uniform insulation for reliable power transmission over long distances.

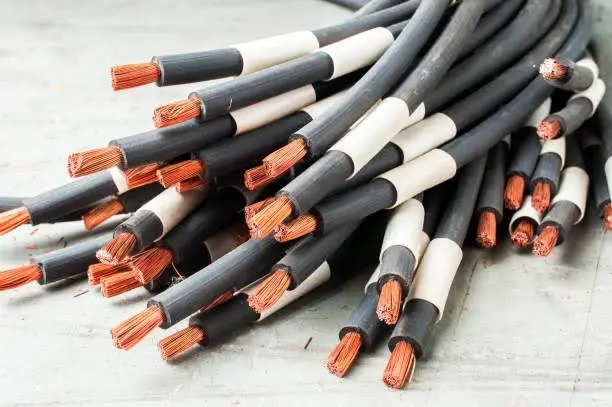

- Industrial Power Cables: Provides mechanical strength and thermal resistance for heavy-duty applications in factories and industrial plants.
- Submarine & Underground Cables: Improves chemical resistance, moisture resistance, and long-term durability in harsh environments.
- Specialty XLPE Compounds: Used in flame-retardant, semi-conductive, and thermally stabilized cable formulations for specific industrial and utility applications.
In all these applications, DBTDL ensures that the crosslinking reaction is efficient, uniform, and consistent, directly impacting cable performance and longevity.
Advantages Of Using DBTDL In XLPE Cable Compounds
Using DBTDL offers numerous benefits over non-catalyzed or alternative catalytic systems:
- Faster Crosslinking: Reduces curing time and lowers energy consumption.
- Uniform Crosslink Density: Ensures consistent mechanical and thermal properties across the cable insulation.
- Lower Processing Temperatures: Minimizes thermal stress on polymers and additives.
- Improved Thermal Stability: Enhances XLPE’s high-temperature performance.
- Enhanced Electrical Performance: Reduces insulation defects, improving voltage withstand and cable reliability.
- High Selectivity: Minimizes polymer degradation, discoloration, or unwanted side reactions.
- Reduced Peroxide Usage: Efficient catalysis can allow lower peroxide levels, optimizing cost and process control.
These advantages make DBTDL indispensable in producing XLPE cables that meet strict industrial standards for thermal, mechanical, and electrical performance.

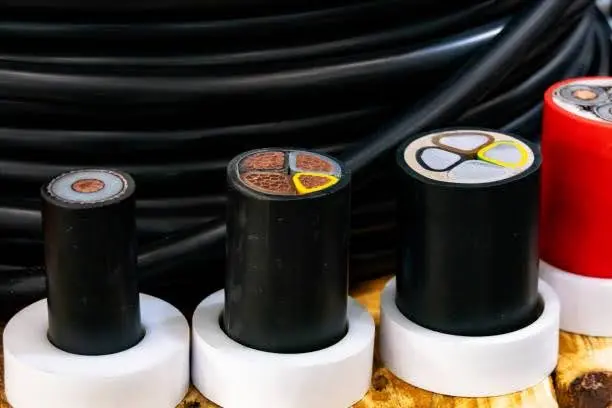

Key Parameters When Using DBTDL
The effectiveness of DBTDL depends on careful control of process parameters:
- Catalyst Concentration: Typically ranges from 0.1% to 0.5% of the polymer weight, depending on the formulation.
- Curing Temperature & Time: Must be optimized to achieve complete crosslinking without polymer degradation.
- Compatibility With Additives: Fillers, stabilizers, and flame retardants should not deactivate the catalyst.
- Storage Conditions: DBTDL should be stored in airtight containers to prevent contamination or moisture exposure.
- Safety Precautions: Proper personal protective equipment (PPE) is recommended due to the potential toxicity of organotin compounds.
Maintaining these parameters ensures consistent crosslinking, optimal cable performance, and long-term reliability.
Safety And Regulatory Considerations
DBTDL is highly effective, but safety and regulatory compliance are crucial. Handling must be done carefully to avoid skin contact, inhalation, or ingestion. Containers should be sealed and stored in dry conditions.
Disposal of DBTDL-containing waste must comply with local environmental regulations. Globally, regulations such as REACH mandate monitoring of organotin compounds to ensure worker safety and minimize environmental impact.
Compliance with these regulations, combined with good manufacturing practices, ensures both safety and product quality in XLPE cable production.
Need help selecting the right stabiliser? Get In Touch With Our Experts!
Trends And Developments In DBTDL Utilisation
The use of DBTDL in XLPE cable compounds continues to evolve as the industry seeks more efficient, sustainable, and high-performance solutions. Manufacturers are increasingly focused on improving the efficiency of DBTDL to allow lower concentrations while maintaining fast, uniform crosslinking.
This not only reduces material costs but also improves environmental and safety compliance. Hybrid catalytic systems, which combine DBTDL with other organometallic or organic catalysts, are being explored to achieve more precise control over polymer network formation and crosslink density.
Reducing residual DBTDL in finished XLPE products is another important trend, aimed at improving safety, minimizing organotin content, and meeting stricter environmental regulations.
Additionally, the development of advanced XLPE compounds such as flame-retardant, high-temperature, and semi-conductive formulations relies heavily on optimized DBTDL use to ensure consistent thermal, mechanical, and electrical properties.
Despite the emergence of alternative catalyst technologies, DBTDL remains a highly reliable and widely used catalyst in large-scale XLPE cable production, due to its efficiency, selectivity, and proven track record in industrial applications.
In Conclusion
DBTDL plays a pivotal role in XLPE cable compounds by accelerating peroxide-initiated crosslinking and ensuring uniform polymer network formation. Its use results in faster processing, lower energy consumption, better thermal stability, and improved electrical performance.
Proper handling, formulation control, and optimized processing parameters allow manufacturers to produce XLPE cables suitable for medium and high-voltage applications, industrial power systems, and specialized environments.
Although it works behind the scenes, DBTDL is essential to the reliability, safety, and efficiency of modern XLPE cables, making it one of the most important catalysts in the cable industry.
FAQs
-
What Is DBTDL And Why Is It Used In XLPE Cable Compounds?
DBTDL (Dibutyl Tin Dilaurate) is an organotin catalyst used to accelerate the crosslinking process in XLPE (cross-linked polyethylene) cable compounds. It helps break down peroxides more efficiently during curing, allowing polyethylene chains to form strong, uniform crosslinks. This leads to faster production, improved material consistency, and enhanced mechanical, thermal, and electrical performance in the final cable insulation.
-
How Does DBTDL Improve The Performance Of XLPE Cables?
DBTDL improves XLPE cable performance by ensuring that the polymer network forms evenly and thoroughly. This results in higher gel content, which directly enhances the cable’s mechanical strength and durability. It also improves thermal resistance, enabling the cable to operate safely at elevated temperatures. Additionally, by creating a uniform insulation layer with fewer defects, DBTDL helps improve the electrical reliability and long-term stability of the cable.
-
Are There Any Safety Or Processing Considerations When Using DBTDL?
Yes, using DBTDL requires careful attention to both processing and safety guidelines. The catalyst must be added in controlled concentrations, typically between 0.1% and 0.5%, to ensure effective crosslinking without degrading the polymer. Proper curing temperature and time are also essential to achieve optimal results. From a safety perspective, DBTDL should be handled with protective equipment, stored in sealed containers, and kept away from moisture. Following these precautions helps maintain product quality while ensuring safe handling during the manufacturing process.
